Big hits and all-out descents. This trail-crushing enduro machine features a unique paint treatment that makes each bike one of a kind. Its mixed wheel size, with a 29-inch front and 27.5-inch rear, blends stability and speed with agility that pops. The geometry is designed for a longer-travel 165mm rear suspension setup and a 180mm fork, giving you the upper hand on the on the rowdiest trails and bike park terrain.
RACE-BRED SUSPENSION
The Maestro rear suspension eats up enduro terrain with 165mm of smooth, active rear travel matched with a 180mm travel fork. The trunnion mount rear shock has a longer stroke while the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall frame weight.

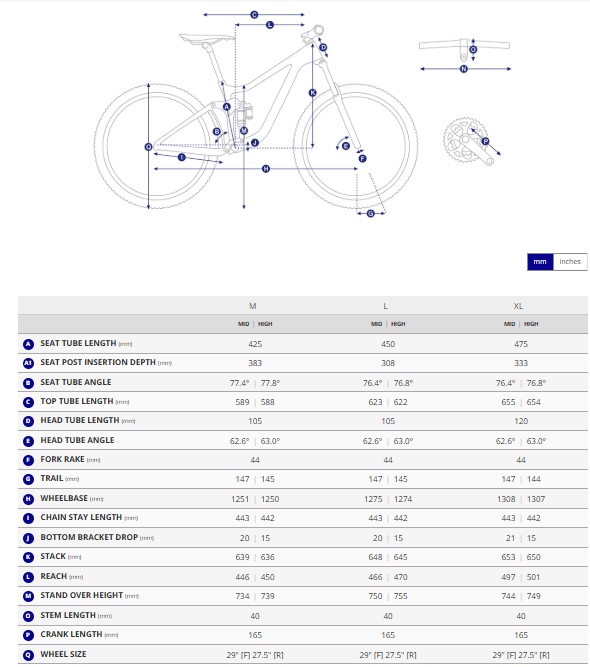

ADJUSTABLE ENDURO GEOMETRY
A flip chip feature lets you adjust frame geometry depending on the terrain. You can select a 62.6 or 63-degree head angle and corresponding 77.4 or 77.8-degree seat tube angle, resulting in a 20 or 15mm bottom bracket drop (size medium) to fine-tune handling for varying trail conditions and riding style.
MIXED WHEEL SIZE
A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.
HIGHLIGHTS
This gravity-focused enduro machine features a lightweight, stiff and super-strong ALUXX SL frameset with a unique paint treatment that makes each bike one of a kind. The geometry is updated to provide added suspension travel in the rear (165mm) along with a 180mm fork to take on the roughest trail conditions. You can adjust the geometry with a flip chip that lets you switch the head tube and seat tube angles, along with bottom bracket drop, to dial in the handling for your riding style and terrain. And a new integrated down tube storage feature provides convenient carrying capacity for on-trail essentials.
****NOTE: This bike is available for purchase online, but must
be picked up from an approved store.| sizes | M, L, XL |
| colors | Black Lightning |
| frame | ALUXX SL-Grade Aluminium front and rear triangles, 165mm Maestro suspension, flip chip 2 position, 12x148mm thru-axle, 27.5 rear wheel, integrated downtube storage, 55mm Chainline |
| fork | RockShox Zeb Ultimate Charger 3.1, 180mm,15x110 Maxle Stealth, custom tuned for Giant |
| shock | RockShox Vivid Ultimate, 2 position, custom tuned for Giant |
| handlebar | Giant Contact TR35, alloy, 35mm |
| grips | Giant Tactal Pro Single lock-on |
| saddle | Giant Romero SL |
| pedals | N/A |
| shifters | SRAM Eagle 90 1x12sp |
| front derailleur | N/A |
| rear derailleur | SRAM Eagle 90 T-Type |
| brake levers | SRAM Maven Silver |
| cassette | SRAM XS 1270, 10-52 |
| chain | SRAM 70 T-Type |
| bottom bracket | SRAM DUB, press fit |
| hubs | Giant TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R] |
| spokes | Sapim Laser |
| tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra , EXO, TR tubeless |
| extras | Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide |
| weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are de |
| Frame Material | Alloy |
| Fork Material | Suspension |
| Brake Type | Hydraulic Disc Brake |
| Groupset Brand | Sram |
| Fork Brand | Rockshox |
| Fork Travel | 171 - 220mm |
| Shock Travel | 141 - 170mm |
| Shifting Type | Mechanical |
| Pedals Included | No |
| Drivetrain Gearing | 1 x 12 |
| Ride Style | Enduro |
| SIZES | M, L, XL |
| COLORS | Black Lightning |
| FRAME | ALUXX SL-Grade Aluminium front and rear triangles, 165mm Maestro suspension, flip chip 2 position, 12x148mm thru-axle, 27.5 rear wheel, integrated downtube storage, 55mm Chainline |
| Fork | RockShox Zeb Ultimate Charger 3.1, 180mm,15x110 Maxle Stealth, custom tuned for Giant |
| Shock | RockShox Vivid Ultimate, 2 position, custom tuned for Giant |
| Handlebar | Giant Contact TR35, alloy, 35mm |
| GRIPS | Giant Tactal Pro Single lock-on |
| Saddle | Giant Romero SL |
| PEDALS | N/A |
| Shifters | SRAM Eagle 90 1x12sp |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Eagle 90 T-Type |
| Brake Levers | SRAM Maven Silver |
| Cassette | SRAM XS 1270, 10-52 |
| Chain | SRAM 70 T-Type |
| Bottom Bracket | SRAM DUB, press fit |
| HUBS | Giant TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R] |
| SPOKES | Sapim Laser |
| Tires | [F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 27.5x2.4 WT, 3C MaxxTerra , EXO, TR tubeless |
| EXTRAS | Tubeless prepared, 2.5" max tyre size, 36t max chainring size, MRP AMG chain guide |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are de |
Ordering a bike from Evo? If you choose the option Evo Home Delivery at the checkout your order will be personally delivered to you, by an Evo Crew Member, who will also be able to answer any questions you have about your new bike. If you choose Evo Delivery your bike will be delivered completely built, tuned and ready to ride! We are also able to offer Evo Home Delivery on previously restricted brands such as Giant & Trek!
Our home delivery charge is only $30 for 15km and $1 per km after that.
Free for all orders over $99. Orders under $99 a $6.99 flat shipping & handling fee applies. Order and pay online and collect everything from one of our showrooms. Just select which store you would like to collect from at checkout. Find out more about Click & Collect here.
LEARN MORE
* All specifications listed are subject to change without notice. Please note that our specifications may be impacted by manufacturer component substitution changes caused by high global demand for bikes and resulting supply chain issues in the bike industry. We recommend confirming the specifications with your local Evo Cycles showroom if you have any questions.
Bike Weight: Many brands strive to list the lowest possible weight, but in reality weight can vary based on frame size, finish, hardware and accessories. The most accurate way to determine any bike's weight is to have your local showroom weigh it for you.
