Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
The Marin Rift Zone 29 1 is your gateway to the Rifty family, made to push the limits of your riding but not your bank balance. It's built with super reliable X-Fusion suspension, grippy Vee Crown Gem tires, plenty of Shimano and a hand-picked selection of our favorite Marin components.
SERIES 3 ALUMINUMIM FRAME
Rift Zone alloy models feature Series 3 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing with new braze-in ports, giving the rider a high feature and high-performing upgrade-worthy platform.
MULTITRAC SUSPENSION TECHNOLOGY
MultiTrac is an acclaimed suspension system, fine-tuned to have a balanced ride capable of absorbing big hits with an efficient pedaling platform. The rocker link provides a progressive leverage ratio for the rear shock for small bump sensitivity and the feeling of a long travel system on large drops and rocks. 130mm rear travel on all Rift Zone models.

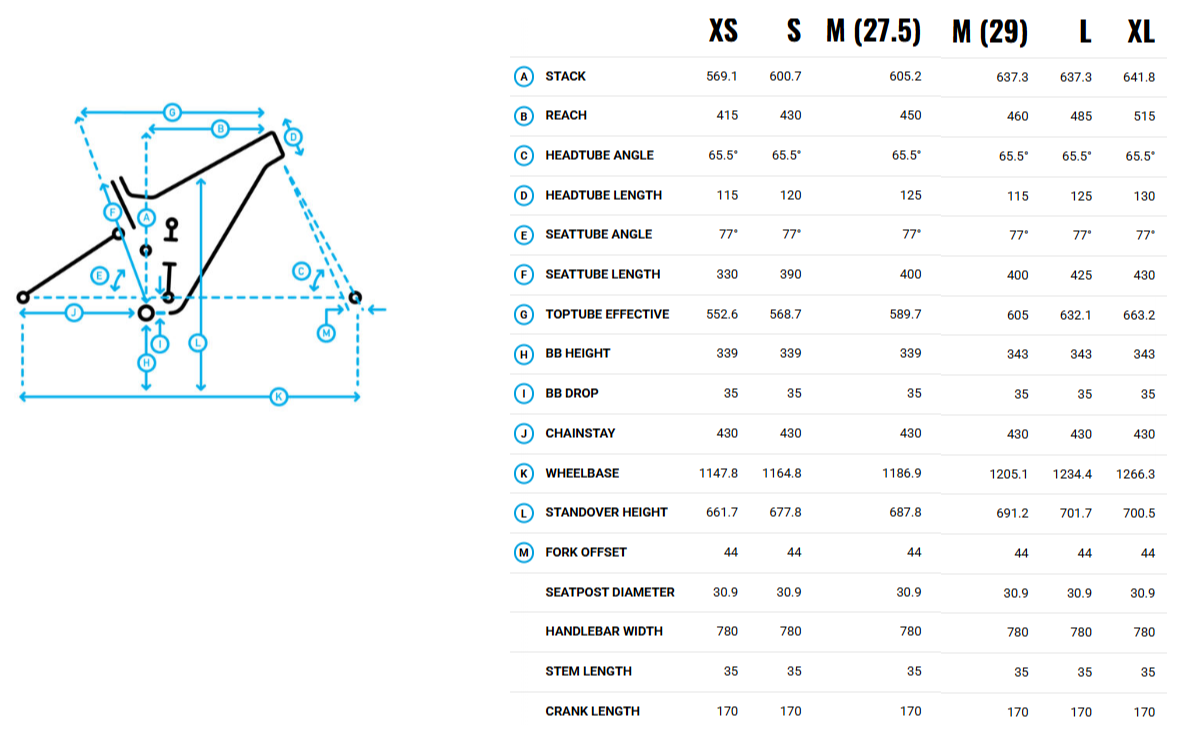

MODERN TRAIL GEOMETRY
Trail geometry with 430mm chainstays, low bottom bracket, long top tube, and a slack 65.5° head angle make for a playful yet confidence-inspiring bike.
INTERNAL ROUTING
Rift Zone Alloy models sport full internal cable/hose routing in the front triangle, and all-new brazed-in cable ports, providing a clean and rattle free cable set up.
CHAINSTAY/SEATSTAY PROTECTORS & UDH ON ALLOY MODELS
Rift Zone models have enhanced chainstay and seat stay protectors for a quiet ride, and utilize SRAM's Universal Derailleur Hanger (UDH) to help future-proof the frame as well as allow for T-type drivetrains.
ENHANCED CHAINSTAY/SEATSTAY PROTECTION
Rift Zone models have prominent chainstay and seat stay protectors for a quiet ride that also protects the paint finish.
| frame | Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
| fork | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| shock | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| rims | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| hub rear | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body |
| hub front | Shimano HF-MT400B, 110x15mm, Centerlock |
| spokes | 14g Black Stainless Steel |
| tires | Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible |
| derailleur rear | Shimano RD-U6000, 11-Speed GS |
| shift lever | Shimano, SL-U6000-11R, 11-Speed |
| crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| bottom bracket | External Sealed Cartridge Bearing |
| chain | Shimano LG-500 11-Speed |
| cassette | Shimano CS-LG400-11, 11-Speed, 11-50T |
| brakes front | Tektro HD-M280 Hydraulic, 180mm Rotor |
| brakes rear | Tektro HD-M280 Hydraulic, 180mm Rotor |
| brake levers | Tektro HD-M280 |
| handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| stem | Marin 3D Forged Alloy, 35mm |
| grips | Marin MTN, Closed End |
| headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| seatpost | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| saddle | Marin Speed Concept |
| pedals | - |
| extras | Closed 9-12 Thru-Axle Bolt On System |
| FRAME | Series 3 6061 Aluminum, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs |
| Fork | X-Fusion Slide (29") or Sweep (27.5") Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| Shock | X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom |
| RIMS | Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hub Rear | Shimano HB-MT200B, 141 QR, Centerlock, Standard Freehub Body |
| Hub Front | Shimano HF-MT400B, 110x15mm, Centerlock |
| SPOKES | 14g Black Stainless Steel |
| Tires | Vee Tire Co. Snap WCE 2.35", Top 40 Compound, GXE Core, 90 TPI, Tubeless Compatible |
| DERAILLEUR REAR | Shimano RD-U6000, 11-Speed GS |
| Shift Lever | Shimano, SL-U6000-11R, 11-Speed |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Chain | Shimano LG-500 11-Speed |
| Cassette | Shimano CS-LG400-11, 11-Speed, 11-50T |
| Brakes Front | Tektro HD-M280 Hydraulic, 180mm Rotor |
| Brakes Rear | Tektro HD-M280 Hydraulic, 180mm Rotor |
| Brake Levers | Tektro HD-M280 |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 35mm |
| GRIPS | Marin MTN, Closed End |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Seatpost | X-Fusion Manic, 1x Composite Remote, Size XS-S 150mm Travel, Size M-XL 170mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| PEDALS | - |
| EXTRAS | Closed 9-12 Thru-Axle Bolt On System |
| Frame Material | Alloy |
| Fork Material | Alloy |
| Brake Type | Hydraulic Disc Brake |
| Groupset Brand | Shimano |
| Fork Brand | Xfusion |
| Fork Travel | 121 - 140mm |
| Shock Travel | 0 - 100mm |
| Shifting Type | Mechanical |
| Pedals Included | No |
| Drivetrain Gearing | 1 x 11 |
| Ride Style | Trail |
